Intelligent Industrial Gateway - CGW
Supports 15+ industrial communication protocols - Communication integration solution.
The first step towards the IIoT, ideal for integrating system communication architecture.
Converting Multiple Industrial Protocols Simultaneously?
The Intelligent Industrial Gateway (CGW), functions as an IIoT gateway extensively utilized by leading industries, showcasing expertise in integrating over 15 types of industrial communication protocols.
In addition to efficiently converting communication protocols between devices and SCADA systems, it also enables cloud connectivity via OPC UA and MQTT, thereby rapidly establishing a robust IIoT foundation.
Unify Protocols, Simplify the Connections between Systems.
Convert and Unify Protocols
By supporting various protocols, concerns related to data exchange between different devices and systems are mitigated, thereby obviating the necessity for multiple gateway types for distinct protocols.
Multi-Port Support with 4G and WiFi Capabilities
Providing 2 Ethernet ports and 2, 4, or 16 RS-232/422/485 ports. The 2-port CGW even features 4G and WiFi capabilities, allowing you to easily connect to the cloud.
Reduce System Load
No need to set up DCOM, and no concerns about incompatibility due to operating system upgrades. Equipped with self-diagnostic functions, it automatically restarts in case of anomalies, making maintenance easy.
Support Data Exchange Between Device Ports
CGW Can diagnose the communication status of each I/O, and can record the communication status of PLCs or devices in real-time. Also features time correction functionality, ensuring consistent system operation time.

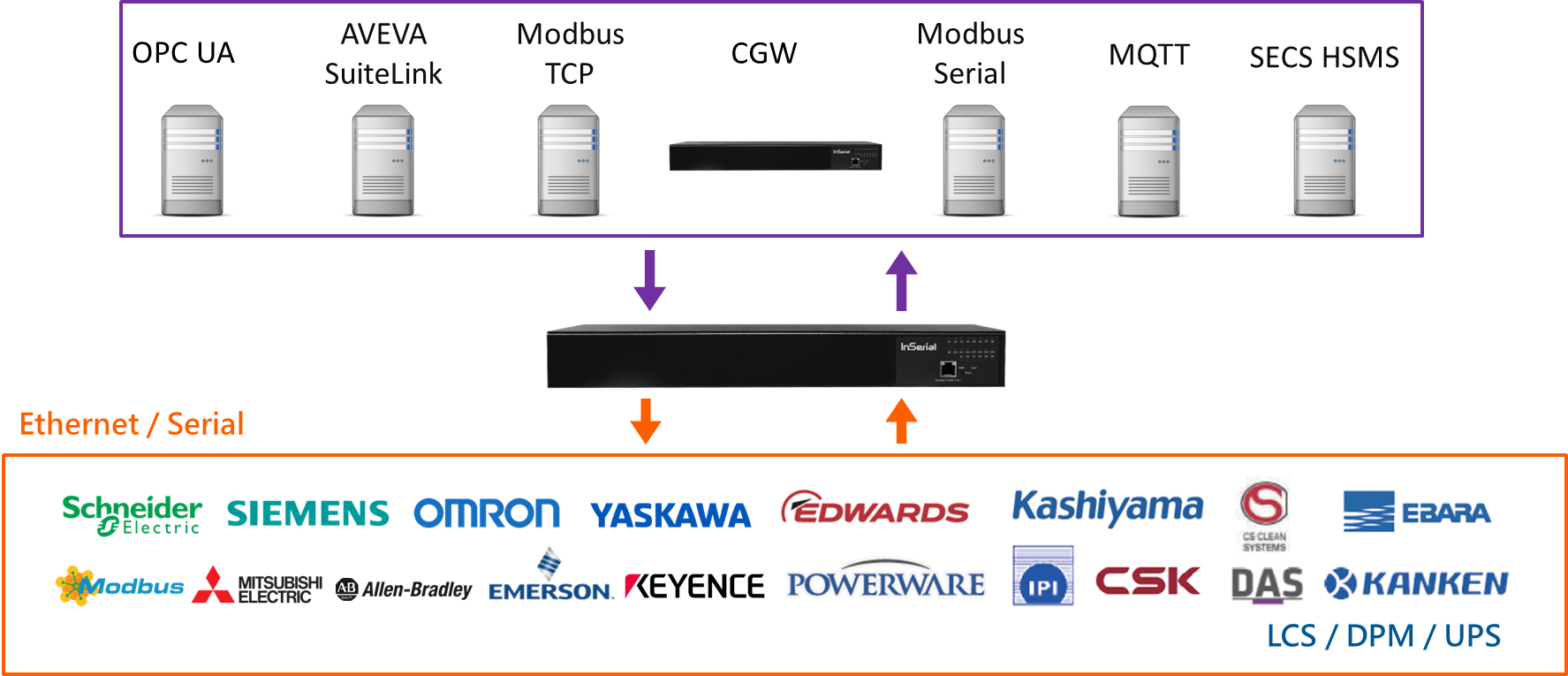

Supported Protocols and Device Brands
CGW is an independent operating platform, with all communication conversion drivers contained within itself.
This helps you significantly reduce the number of drivers installed on your computer and the number of direct connections to devices, streamlining the communication architecture and lowering the risk of computer crashes due to overload.
At the same time, you no longer need to worry about compatibility issues or the need for upgrades caused by Windows system updates. CGW can be configured through a web browser, obviating the need for any additional software installations on your computer.
-
Serial
-
Ethernet
-
Protocols
-
Special & Customized
- Allen-Bradley DF1 : SLC500
- Mitsubishi : A Series, Q Series, QnA, FX, FX0, FX0N, FX0S,FX1N, FX1S, FX2N, FX2C, FX2NC, FX3G, FX3U, FXFORM1 Series
- Modbus : ASCII, RTU
- Omron : CS Series, CJ Series, CV Series
- Allen-Bradley CIP : SLC500, CompactLogix, MicroLogix , ControlLogix
- Siemens S7 : S7-300, S7-400, S7-1200, S7-1500
- Mitsubishi : FX Series, A Series, Q Series, QnA Series, FX5U Series
- GE SRTP : VersaMax, 90-30, 90-70, RX-3i, RX-7i
- Modbus : TCP
- Omron Fins : CS Series, CJ Series, CV Series
- OPC : OPC UA
- Modbus : Modbus Serial / Modbus TCP
- SECS : SECS HSMS
- AVEVA : AVEVA SuiteLink
- EBARA : Dry Pump A series, Dry Vacuum Pump ESX series
- EDWARDS : Dry Pump iM Serial
- Kashiyama : Dry Pump MU Serial, Dry Vacuum Pump PC201
- Powerware UPS : ASCII Data
For protocols of special equipment such as detectors, analyzers, seismographs, etc., please download datasheet for more information.
If you have any customization needs, please feel free to contact us!
What our customers say
“The issues of disconnections or unstable connections caused by excessive system load are virtually eliminated after using CGW.”
“It Successfully integrating diverse communication protocols of Dry Pumps, LSCs, and PLCs.CGW replaces monitoring computers from different vendors, significantly reducing the risk of system crashes. It also enables rapid deployment of maintenance work for Dry Pumps and Local Scrubbers.”
“Using CGW significantly reduces the number of Ethernet connections for on-site gas detectors, preventing network storm. Also, because CGW replaces simple on-site computers, system upgrades no longer pose compatibility issues.”
